Recording equipment and separate audio cables
Recording equipment and separate audio cables
In this guide
  1. Separate recording channels from the final mix
  2. Listen to each source channel independently
  3. Correct mapping and export a short sample
  4. Example: narration captured on the left
  5. Investigate differences introduced after export
  6. Agree the delivery layout before scaling production

Separate recording channels from the final mix

Mono carries one channel; stereo carries left and right channels. A one-channel voice recording is not inherently defective. Distinguish where the source voice was recorded from where the final audience should hear it.

A recording with one speaker on each source channel needs a different decision from a single microphone present on only one side. Combining the channels before understanding their contents can remove useful separation. Record the source layout first, then decide how the editor should map it and what the destination expects in the final file.

Listen to each source channel independently

Keep the original and audition the left channel, right channel and combined playback. Note whether each contains voice, ambience, silence or another speaker. Test the headphones and device with a known-good file to rule out a playback fault.

Metadata showing two channels does not prove that useful sound exists in both. Compare the channel display with listening. A source can be technically stereo while holding the only microphone signal on the left; the task is to map that signal deliberately rather than assume the empty side can be fixed by raising master gain.

Correct mapping and export a short sample

Adobe’s channel-mapping documentation illustrates the distinction between source and output assignments. In the editor you use, inspect source interpretation, track routing and export layout rather than changing only a final volume control. Select the relevant source channel deliberately when that is the intended signal.

Export a short representative passage before the full programme. Check the left and right result and the perceived voice level. If music is present, confirm that the corrected routing has not unintentionally changed the relationship between speech and the rest of the mix.

Records to reconcile
Records to reconcile
CheckRecordAcceptance
SourceContents of left and rightSpeakers and silence identified
MappingSource, track and outputVoice appears where intended
ReleaseDevice, destination and versionSecond playback route checked

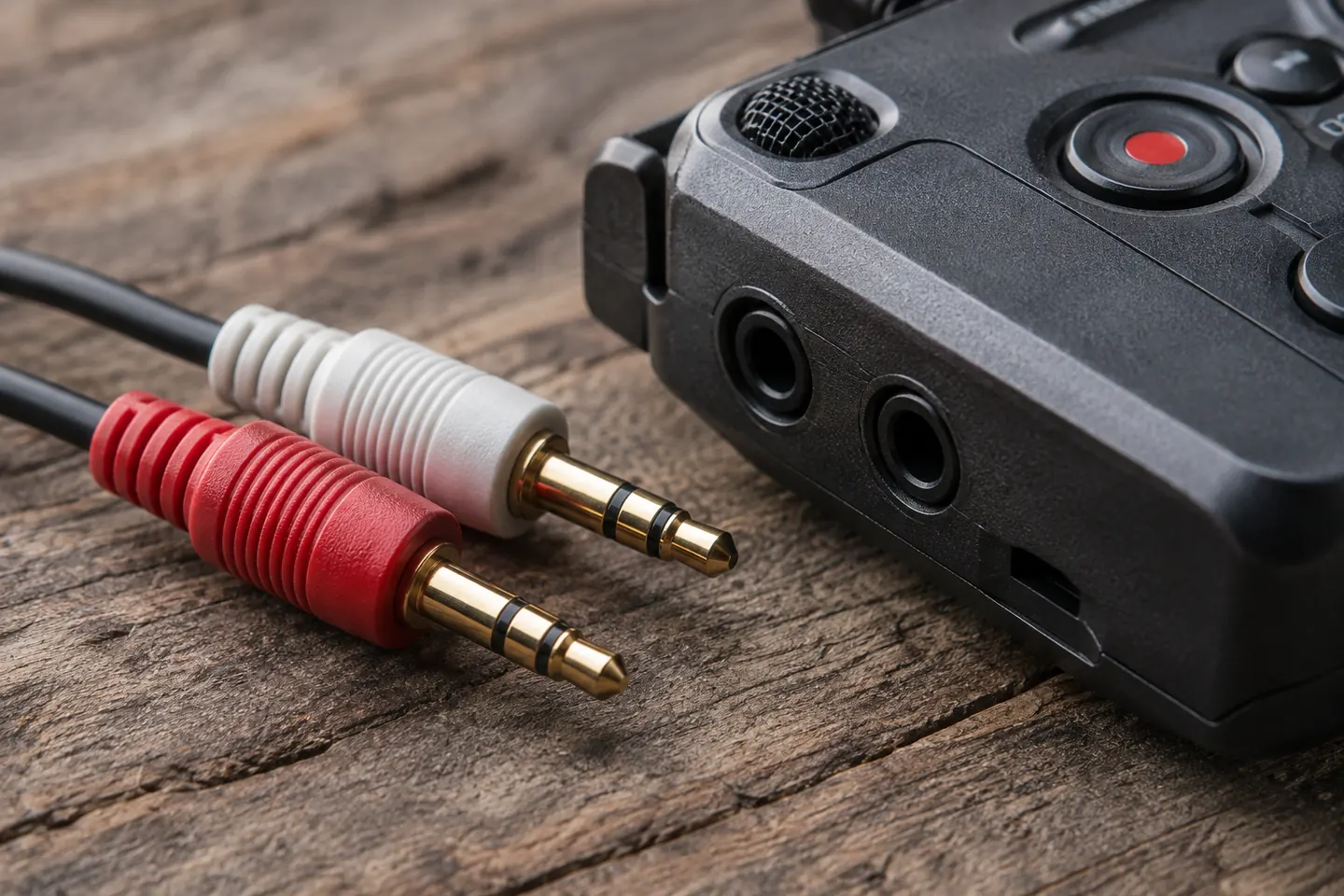

A close view of audio connectors
A close view of audio connectors

Example: narration captured on the left

In a fictional source A-031, narration is on the left and the right is nearly silent. The recipient wants an ordinary explanatory video with the voice audible through either ear. Create a candidate using the intended source signal, then listen with both ears and each side separately.

Amplifying the silent channel is not a solution. If the right channel contains a different speaker, this example no longer describes the source: preserve that speaker’s content and treat it as a separate editing requirement before deciding how to combine the final mix.

Investigate differences introduced after export

If the editor sounds correct but the export does not, inspect export routing and the player. Listen to the same exported file on another device. If the fault appears only after upload, record the published derivative separately from the local file.

Change one part of the chain at a time. Altering source interpretation, track routing and export settings together makes the cause harder to identify. Keep the original and previous settings until a candidate is accepted, and record the sample range and playback routes used for the decision.

From checks to action
From checks to actionCan the source voice be heard? → Check mapping and export (Confirmed); Can the source voice be heard? → Inspect recording and connections (Incomplete); Check mapping and export → Recheck released version (Accept); Inspect recording and connections → Can the source voice be heard? (After correction)ConfirmedIncompleteAcceptCan the source voice be heard?Check mapping andexportInspect recording andconnectionsRecheck released versionFrom checks to actionCan the source voice be heard? → Check mapping and export (Confirmed); Can the source voice be heard? → Inspect recording and connections (Incomplete); Check mapping and export → Recheck released version (Accept); Inspect recording and connections → Can the source voice be heard? (After correction)ConfirmedIncompleteAcceptCan the sourcevoice be heard?Checkmapping andexportInspectrecordingandconnectionsRecheck releasedversion
  • After correction:Inspect recording and connections → Can the source voice be heard?

Agree the delivery layout before scaling production

Ask the recipient whether they need mono, stereo, separate speakers, audio inside a video or a standalone file. Existing editing software may already provide the required mapping. Evaluate another tool by the ability to inspect and test the actual export rather than by a general promise of better sound.

Matching the filename extension is not the acceptance test. Confirm channel placement, intelligible words, appropriate level and destination playback. A short pre-production check file can reveal recurring wiring or export mistakes before they affect an entire series.
